تفاصيل المنتج:
|
| درجة حرارة العمل (°C): | -20 ℃ ~ 40 ℃ | وزن المنتج (كجم): | 2.5 كجم |
|---|---|---|---|
| نوع العنصر: | بقعة ضوء الحديقة | الكلمة الرئيسية: | إضاءة موضعية لمصباح شجرة ضوء الحديقة |
| يكتب: | مع غطاء مضاد للوهج من الألومنيوم | لون فاتح: | لون واحد,RGB3in1,RGB4in1 |
| إبراز: | LED garden spot light with DMX512,aluminum outdoor LED spot light,36W waterproof garden spot light,aluminum outdoor LED spot light,36W waterproof garden spot light |
||

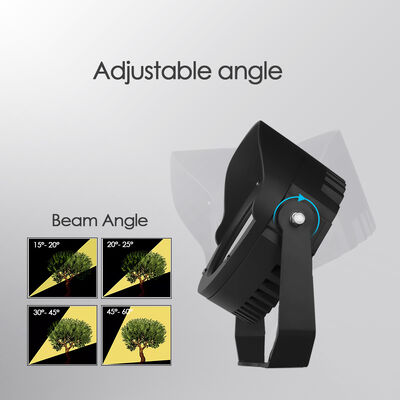

| Item No. | Light Source | Lens Beam Angle | Consumption (Watt) | Input Voltage | IK Rate |
|---|---|---|---|---|---|
| 832031 | 3*1W | 8°/15°/20°/30°/45°/60° | 3.3 | DC24V AC100-240V | 7 |
| 832032 | 3*2W | 8°/15°/20°/30°/45°/60° | 6 | DC24V AC100-240V | 7 |
| 832036 | 3*3W RGB3in1 | 20°/30°/45°/60° | 9 | DC24V | 7 |
| 83261 | 6*1W | 8°/15°/20°/30°/45°/60° | 6.5 | DC24V AC100-240V | 7 |
| 83262 | 6*2W | 8°/15°/20°/30°/45°/60° | 12 | DC24V AC100-240V | 7 |
| 83266 | 6*3W RGB3in1 | 20°/30°/45°/60° | 18 | DC24V | 7 |
| 832121 | 12*1W | 8°/15°/20°/30°/45°/60° | 12 | DC24V AC100-240V | 7 |
| 832122 | 12*2W | 8°/15°/20°/30°/45°/60° | 24 | DC24V AC100-240V | 7 |
| 832126 | 12*3W RGB3in1 | 20°/30°/45°/60° | 36 | DC24V | 7 |
| Housing & Front Cover | 12# Die-casting outdoor powder painting aluminum. T=60-80μm Adhesion of ISO Glass 1/ASTM Glass 4B |
| Glass | Tempered glass. T=4mm |
| Lens | Optical lens, efficiency ≥85% |
| Cable Gland | IP68, PG9 nickel coated copper |
| Gasket | Molding shaped silicone double seal |
| LED | Epistar or CREE, Ra>80 |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity ≥2.0w/mk |
| Driver | Constant current output Single color LED = 1-circuit output RGB 3in1 LED = 3-circuit output |
| Operating Temperature | -20℃ to 40℃ |
| Power Cable | H05RN-F 2*0.75mm² L=1m (low voltage) H05RN-F 3*0.75mm² L=1m (high voltage) H05RN-F 4*0.75mm² L=1m (for RGB) |
| Spike | PVC |
| Mounting Base | Powder painting die-casting aluminum |
| Honeycomb | Optional Parts |
