تفاصيل المنتج:
|
| درجة حرارة العمل (°C): | -20 ℃ ~ 40 ℃ | عمر العمل (ساعة): | 50000 |
|---|---|---|---|

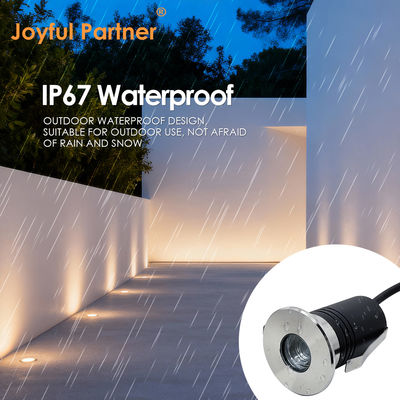

| تصنيف الملكية الفكرية: | IP67، IP67 مقاوم للماء | تطبيق: | الخطوة، الدرج، سطح السفينة، البيئة الرطبة |
| نوع العنصر: | أدى ضوء تحت الأرض | الجهد االكهربى: | DC12V/DC24V |

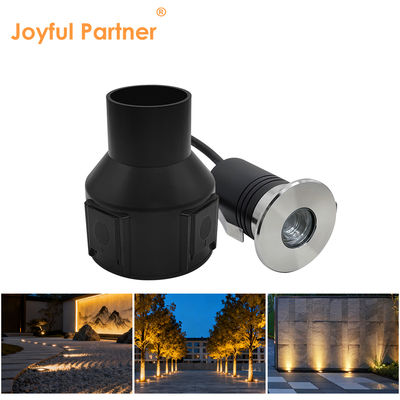

| إبراز: | LED outdoor inground light 55mm diameter,CRI90 deep reflector anti-glare light,architectural accent LED underground light,CRI90 deep reflector anti-glare light,architectural accent LED underground light |
||
| Item No. | Light source | Lens beam angle(°) | Consumption(watt) | Input Voltage(V) | Ik rate |
|---|---|---|---|---|---|
| 82511 | 1*1W LED | 8°/15°/30°/45°/60° | 1.2 | DC12V DC24V AC100-24V |
8 |
| 82512 | 1*3W LED | 8°/15°/30°/45°/60° | 3 | DC12V DC24V AC100-24V |
8 |
| 82516 | 1*3W RGB3in1 LED | 30°/45°/60° | 3.1 | DC12V DC24V |
8 |

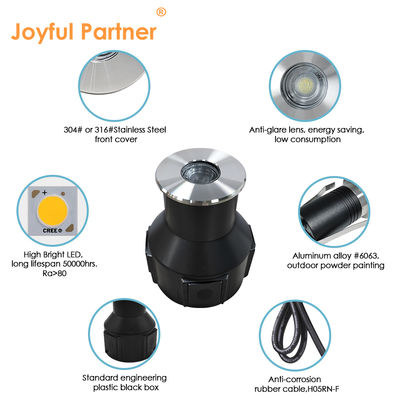

| Housing | Extruded aluminum alloy #6063, anodic oxidation or outdoor powder painting |
| Front cover | 304# or 316# Stainless Steel |
| Lens | Optical lens, efficiency≥85% |
| Glass | Tempered glass. T=7mm |
| Gasket | Molding shaped silicone double seal |
| Operating temperature | (-20℃~40℃) |
| Power cable |
H05RN-F2*0.75mm²L=0.5m (low voltage) H05RN-F3*0.75mm²L=0.5m (for single color/high voltage) H05RN-F4*0.75mm²L=0.5m (for RGB) |
| Mounting sleeve | ABS |
| Optional accessory | Honeycomb |
