تفاصيل المنتج:
|
| درجة حرارة اللون (CCT): | 2700ك3000ك4000ك5000ك | جهد المدخلات (V): | 12 فولت تيار مستمر/24 فولت تيار مستمر |
|---|---|---|---|
| مصباح كفاءة مضيئة (LM/W): | 45 | الضمان (سنة): | عامين |

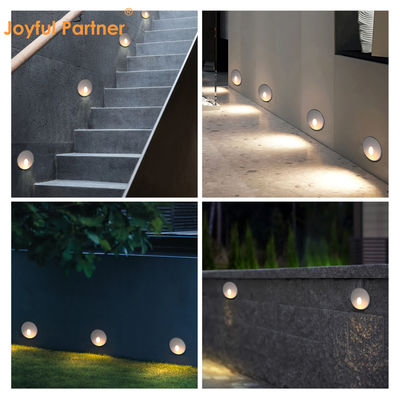

| مؤشر عرض الألوان (RA): | 80 | الاستخدام: | في الهواء الطلق، حديقة، كونر، درج، مسار |
| إبراز: | recessed step lights die-casting aluminum,AC220V stairway LED lights,plastic mounting sleeve wall light,AC220V stairway LED lights,plastic mounting sleeve wall light |
||

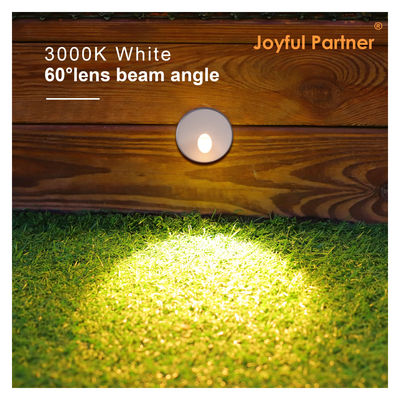

| Item No. | Light source | Lens beam angle(°) | Consumption(watt) | Input Voltage(V) | Ik rate |
|---|---|---|---|---|---|
| 1SR0101 | 1*1W | 60° | 1 | DC12V/DC24V | 10 |
| 1SR0101H | 1*1W | 60° | 1.3 | AC100-240V | 10 |
| 1SR0102 | 1*2W | 60° | 3 | DC12V/DC24V | 10 |
| 1SR0102H | 1*3W | 60° | 3.3 | AC100-240V | 10 |
| Component | Specification |
|---|---|
| Housing | Made of ADC12#Die-casting outdoor powder coated aluminum |
| Glass | Tempered glass.T=2mm |
| Lens | Optical lens, effciency≥85% |
| Cable gland | M12 nickel coated copper |
| Gasket | Tooling shaped seal |
| LED | Epistar or CREE power LED, Ra>80 |
| PCB | Excellent heat conductivity aluminum, coeffcient of heat conductivity≥2.0w/mk |
| Driver | Constant current output single color LED=1-circuit output |
| Operating temperature | (-20℃~40℃) |
| Power cable | H05RN-F2*0.75mm²L=0.3m(low voltage) H05RN-F3*0.75mm²L=0.3m(high voltage) |
Our company has a reputation for delivering high-quality and sustainable products that meet the needs of its clients. We are committed to providing top-tier products designed to withstand harsh outdoor environments and provide long-lasting performance.
We use high-quality materials and employ advanced manufacturing processes to ensure our products are of the highest quality. All products undergo rigorous testing and quality control measures to meet necessary standards and provide optimal performance.
